 工控设备,上海设备,厂家设备,上海上晋设备,上海工控设备,电磁阀
| 标准 | 国标 | | 材质 | 黄铜 | | 工作温度 | 常温 | | 公称通径 | 3（mm） | | 连接形式 | 螺纹 | | 流动方向 | 双向 | | 适用介质 | 水 | | 形态 | 柱塞式 | | 用途 | 疏水 | | 零部件及配件 | 线圈 | | 压力环境 | 常压 | | 类型(通道位置) | 二通式 | | 品牌 | POV | | 型号 | ZS |

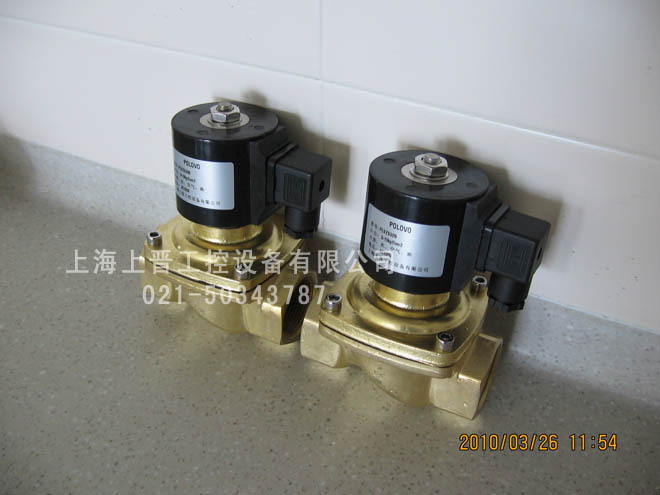

零压差启动直动式二位二通微型电磁阀 不锈钢与锻铜两种材质 常闭式 |
微型直动式电磁阀特点 二位二通常闭型电磁阀,断电关闭,通电打开;产品为系列化生产,体积小,流量大,适用范围广
阀体材质为:铜,SS304不锈钢,SS316不锈钢(定)
环境温度: 0℃～65℃
介质温度: 0℃～120℃
安装:按阀上所标流向箭头,可任意安装;为增强使用寿命,**好线圈向上,水平安装.
电压:AC24V/110V/220V/230V/240V 50/60HZ DC24V/12V ±10%允许波动.可选配德国NASS线圈
密封件:可采用NBR、VITON、EPDM等多种,以适应不同流体的开关控制. ◇微型直动式电磁阀流向图
◇微型直动式电磁阀尺寸图
◇微型直动式电磁阀详细规格表 | 接管口径 | 流量通径mm | CV值 | 压力差（Kgf/cm2) | **大温度℃ | 线圈配置 | 功率 | 线圈等级 | 重量KG | | **小压力 | **大工作压力 | VA | W | | 空气瓦斯 | 水、热水液体 | 轻油≤20CST | AC220V | DC24V | | AC | DC | AC | DC | AC | DC | 1/8” 只配
N05型线圈 | 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 7 | 5 | 80 | N | 13 | 8.5 | B | 0.35 | | 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | | | 120 | N | 13 | 8.5 | B | 0.35 | | 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 7 | 5 | 120 | N | 13 | 8.5 | B | 0.35 | | 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 5 | 4 | 80 | N | 13 | 8.5 | B | 0.35 | | 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | | | 120 | N | 13 | 8.5 | B | 0.35 | | 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 5 | 4 | 120 | N | 13 | 8.5 | B | 0.35 | | 1/8” | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 80 | D | 33 | 20 | F | 0.46 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | | | 120 | D | 33 | 20 | F | 0.46 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 120 | D | 33 | 20 | F | 0.46 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 80 | D | 33 | 20 | F | 0.46 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | | | 120 | D | 33 | 20 | F | 0.46 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 120 | D | 33 | 20 | F | 0.46 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 80 | D | 33 | 20 | F | 0.45 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | | | 120 | D | 33 | 20 | F | 0.45 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | 0.45 | 1/4”
只配
N05型线圈 | 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 7 | 5 | 80 | N | 13 | 20 | B | 0.34 | | 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | | | 120 | N | 13 | 8.5 | B | 0.34 | | 2.5 | 0.23 | 0 | 7 | 5 | 7 | 5 | 7 | 5 | 120 | N | 13 | 8.5 | B | 0.34 | | 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 5 | 4 | 80 | N | 13 | 8.5 | B | 0.34 | | 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | | | 120 | N | 13 | 8.5 | B | 0.34 | | 3 | 0.3 | 0 | 5 | 4 | 5 | 4 | 5 | 4 | 120 | N | 13 | 8.5 | B | 0.34 | | 1/4” | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 80 | D | 33 | 8.5 | F | 0.45 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | | | 120 | D | 33 | 20 | F | 0.45 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 120 | D | 33 | 20 | F | 0.45 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 80 | D | 33 | 20 | F | 0.45 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | | | 120 | D | 33 | 20 | F | 0.45 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 120 | D | 33 | 20 | F | 0.45 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 80 | D | 33 | 20 | F | 0.44 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | | | 120 | D | 33 | 20 | F | 0.44 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | 0.44 |
8）二位二通微型系列直动式电磁阀〈常闭型〉 | 接管口径 | 流量通径mm | CV值 | 压力差（Kgf/cm2) | **大温度℃ | 线圈配置 | 功率 | 线圈等级 | 重量KG | | **小压力 | **大工作压力 | VA | W | | 空气瓦斯 | 水、热水液体 | 轻油≤20CST | AC220V | DC24V | | AC | DC | AC | DC | AC | DC | | 3/8” | 4 | 0.6 | 0 | 8 | 5 | 8 | 5 | 5 | 5 | 80 | D | 33 | 20 | F | 0.6 | | 4 | 0.6 | 0 | 8 | 5 | 8 | 5 | | | 120 | D | 33 | 20 | F | 0.6 | | 4 | 0.6 | 0 | 8 | 5 | 8 | 5 | 5 | 5 | 120 | D | 33 | 20 | F | 0.6 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 80 | D | 33 | 20 | F | 0.51 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | | | 120 | D | 33 | 20 | F | 0.51 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 120 | D | 33 | 20 | F | 0.51 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 80 | D | 33 | 20 | F | 0.51 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | | | 120 | D | 33 | 20 | F | 0.51 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 120 | D | 33 | 20 | F | 0.51 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 80 | D | 33 | 20 | F | 0.49 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | | | 120 | D | 33 | 20 | F | 0.49 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | 0.49 | | 10 | 1.6 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 0.4 | 0.2 | 80 | D | 33 | 20 | F | 0.62 | | 10 | 1.6 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | | | 120 | D | 33 | 20 | F | 0.62 | | 10 | 1.6 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 0.4 | 0.2 | 120 | D | 33 | 20 | F | 0.62 | | 1/2” | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 80 | D | 33 | 20 | F | 0.48 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | | | 120 | D | 33 | 20 | F | 0.48 | | 5 | 0.65 | 0 | 6 | 4 | 6 | 4 | 4 | 3 | 120 | D | 33 | 20 | F | 0.48 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 80 | D | 33 | 20 | F | 0.48 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | | | 120 | D | 33 | 20 | F | 0.48 | | 6 | 0.8 | 0 | 4 | 2.5 | 4 | 2.5 | 3 | 2.5 | 120 | D | 33 | 20 | F | 0.48 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 80 | D | 33 | 20 | F | 0.46 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | | | 120 | D | 33 | 20 | F | 0.46 | | 7.5 | 1.0 | 0 | 1.5 | 1 | 1.5 | 1 | 1.5 | 1 | 120 | D | 33 | 20 | F | 0.46 | | 10 | 1.65 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 0.4 | 0.2 | 80 | D | 33 | 20 | F | 0.59 | | 10 | 1.65 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | | | 120 | D | 33 | 20 | F | | 10 | 1.65 | 0 | 0.5 | 0.3 | 0.5 | 0.3 | 0.4 | 0.2 | 120 | D | 33 | 20 | F |
|
|
