Minimum order: 10 Pieces
Delivery Lead Time: 7Days
Delivery FOB port: China Zhejiang Port
Payment Condition: T/T
Detail Specifications
Continue Power: 1500W
Max. Output Surge: 3000W
DC Input Voltage: 12V or 24V
AC Output Voltage: 110V or 220V
Weight (kg): 3.5 kg

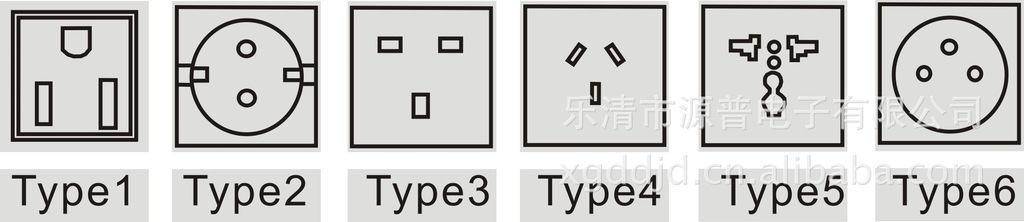

| -Output Receptacles: |
 |
| -Features : |
- Digital microprocessor design
- Short circuit alarm and protection
- Overload alarm and protection
- Reverse polarity protection
- Intelligent over temperature alarm and shutdown
- High and low battery voltage alarm and shutdown
- Intelligent disperses heat system
- High surge capacity for starting demanding loads
- Stable output voltage and frequency
- Low no load current draw
- Advanced SMT technology
- Modified Sine Wave output
| -Scope of Application : |
Computers, medical instruments, cash registers, TVs, DVD players, audio equipment, fax machines, limousines, buses, RVs, air-pumps, various types of light duty motors, etc.
| YPM-1500 Specifications: |
| Model |
YPM-1500-12 |
YPM-1500-24 |
|||||
|
Output |
Continuous output |
1500W |
|||||
|
Surge Power |
3000W |
||||||
|
Voltage |
100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V to be selected |
||||||
|
Regulation |
Vrms ± 8% |
||||||
|
Frequency |
50 Hz or 60Hz ± 1% |
||||||
|
Wave Form |
Modified Sine Wave |
||||||
|
Input |
Voltage |
12V |
24V |
||||
|
Low Battery |
10.5V ± 0.3V Alarm |
21V ± 0.4V Alarm |
|||||
|
High Battery |
Over 16V alarm sounds and shutdown |
Over 32V alarm sounds and shutdown |
|||||
|
No load current (A) |
0.6 amp |
||||||
|
Efficiency |
Over 90% |
||||||
|
Protection |
High temperature |
|
|||||
|
Short-circuit |
Yes |
||||||
|
Overload |
Yes |
||||||
|
Cooling Fan |
No |
||||||
|
Indicator |
Audio Sound |
|
|||||
|
Visual |
LED Red Light : Inverter is ON |
||||||
|
Mechanical |
Dimensions (mm) |
(310+30) x 157 x 75 |
|||||
|
Weight |
3.5kg |
||||||
