S11-M系列三相配电变压器技术参数
|
产品型号 |
额定 |
额定电压KV |
联 |
空载 |
负载 |
空载 |
重量Kg |
轨迹 |
外形尺寸mm |
||||
|
高压 |
高压分 |
低压 |
油重 |
器身重 |
总重 |
|
长×宽×高 |
||||||
|
S11-M-30/a10 |
30 |
6 |
±5% ±2×2.5% |
0.4 |
Y.yn0 |
100 |
600 |
2.1 |
85 |
160 |
355 |
400×400 |
1010×780×1130 |
|
S11-M-50/10 |
50 |
130 |
870 |
2.0 |
100 |
225 |
450 |
400×400 |
1100×790×1150 |
||||
|
S11-M-63/10 |
63 |
150 |
1040 |
1.9 |
105 |
260 |
490 |
550×550 |
1090×820×1180 |
||||
|
S11-M-80/10 |
80 |
180 |
1250 |
1.8 |
115 |
305 |
555 |
550×550 |
1090×850×1200 |
||||
|
S11-M-100/10 |
100 |
200 |
1500 |
1.6 |
125 |
360 |
630 |
550×550 |
1110×645×1160 |
||||
|
S11-M-125/10 |
125 |
240 |
1800 |
1.5 |
135 |
415 |
710 |
550×550 |
1150×670×1180 |
||||
|
S11-M-160/10 |
160 |
280 |
2200 |
1.4 |
155 |
485 |
825 |
550×550 |
1250×710×1260 |
||||
|
S11-M-200/10 |
200 |
340 |
2600 |
1.3 |
170 |
570 |
935 |
550×550 |
1280×730×1300 |
||||
|
S11-M-250/10 |
250 |
400 |
3050 |
1.2 |
200 |
700 |
1130 |
550×550 |
1290×800×1330 |
||||
|
S11-M-315/10 |
315 |
480 |
3650 |
1.1 |
225 |
800 |
1295 |
660×660 |
1320×840×1350 |
||||
|
S11-M-400/10 |
400 |
570 |
4300 |
1.0 |
260 |
970 |
1590 |
660×660 |
1430×890×1420 |
||||
|
S11-M-500/10 |
500 |
680 |
5150 |
1.0 |
285 |
1130 |
1840 |
660×660 |
1550×860×1490 |
||||
|
S11-M-630/10 |
630 |
810 |
6200 |
0.9 |
430 |
1385 |
2340 |
820×820 |
1570×920×1530 |
||||
|
S11-M-800/10 |
800 |
980 |
7500 |
0.8 |
500 |
1640 |
2750 |
820×820 |
1540×930×1560 |
||||
|
S11-M-1000/10 |
1000 |
1150 |
10300 |
0.7 |
560 |
1780 |
3110 |
820×820 |
1780×1080×1610 |
||||
|
S11-M-1250/10 |
1250 |
1360 |
12000 |
0.6 |
630 |
2115 |
3630 |
820×820 |
1900×1090×1700 |
||||
|
S11-M-1600/10 |
1600 |
1640 |
14500 |
0.6 |
750 |
2600 |
4410 |
820×820 |
|
||||

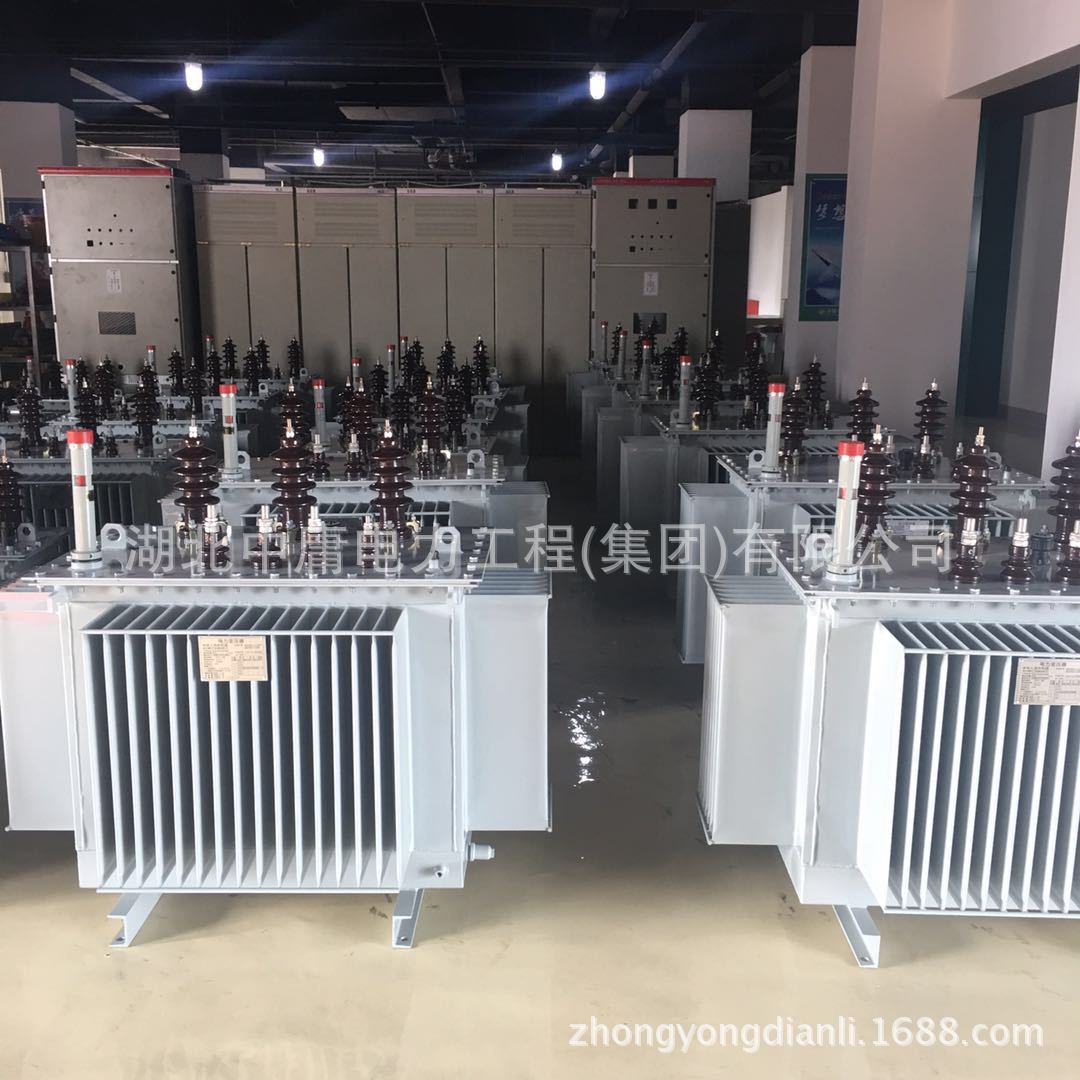

产品展示：
