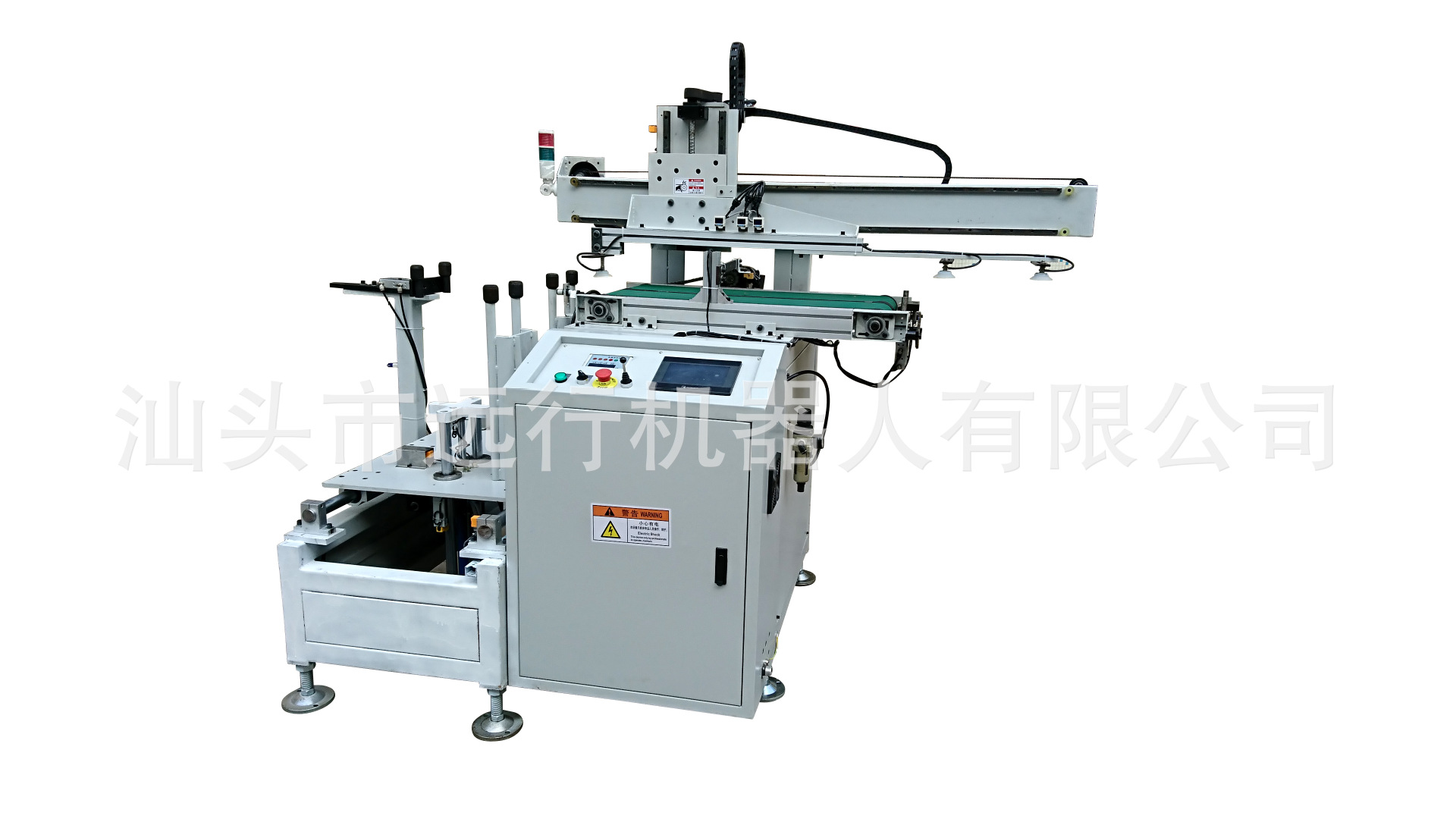

煲底片冲压机械手yx-bdp006
详细介绍
·适用场合：冲床一道冲压
·适用产品形状：方形、圆形‘、异形均可
·适用生产：锅类、碗类、盆类、盖类、盘类、杯类等不锈钢制品。
技术参数
·尺寸（长*宽*高）：2000mm*1100mm*1750mm
·重量：350kg
·额定功率：2.2KW
·额定电压：380V
·额定气压：6kgf/cm^2
·适应产品范围：50~400mm
·空跑速度：30次/分钟
·主要配置：台湾台达双伺服电机
台湾威纶通人机介面+汇川可编程控制器
台湾上银直线导轨
Stamping manipulator for cooker bottom plate
Brand name: yuanxing robot
Product details:
Applicable scope:A path of stamping forpuncher
Applicable product shape: Square, circular and different shapes
Applicable to produce:Stainless steel products such as pots, bowls, dishware, caps, plates, cups and any others
TECHNICAL SPECIFICATIONS
The size:L2000mm*W1100mm*H1750mm
Weight350KG
Rated power:2.2KW
Rated voltage:380V
Rated pressure:6kgf/cm^2
Adaptive product range:50~600mm
Air speed: 30pcs/min
Main accessories:Taiwan delta dual servo motor
Taiwan WeiLuntong human computer interface + Hun Chuan PLC
Taiwan Hiwin linear lead rail
切卷机械手yx-qj004
详细介绍
·适用场合：五金切边、卷边生产
·适用产品形状：圆形
·适用生产：锅类、碗类、盆类、盖类、盘类、杯类等不锈钢制品。
技术参数
·尺寸（长*宽*高）：2200mm*1150mm*1750mm
·重量：300kg
·额定功率：2.0KW
·额定电压：220V
·额定气压：6kgf/cm^2
·适应产品范围：50~600mm
·空跑速度：24次/分钟
·主要配置：台湾台达双伺服电机
台湾威纶通人机介面+汇川可编程控制器
台湾上银直线导轨
Cutting and rolling manipulator
Brand name: yuanxing robot
Product details:
Applicable scope:cutting &rolling production for hardware
Applicable product shape: circular
Applicable to product:Stainless steel products such as pots, bowls, dishware, caps, plates, cups and any others
SPECIFICATIONS
The size:L2200mm*W1150mm*H1750mm
Weight:300KG
Rated power:2.0KW(kilo watt)
Rated voltage: 220V
Rated pressure:6kgf/cm^2（kilogram-force）
Adaptive material range:50~600mm（millimeter）
Air speed: 24pcs/min
Main accessories:Taiwan delta dual servo motor
Taiwan WeiLuntong human computer interface + Hun Chuan PLC
Taiwan Hiwin linear lead rail
